8FT Spindle Log Debarking Machine

Spindle wood debarking machine is the important equipment for veneer production, the wood must be removed the bark and rounded before rotary cutting. This machine is more suitable for big diameter wood log, and the wood diameter can be up to 1500mm.

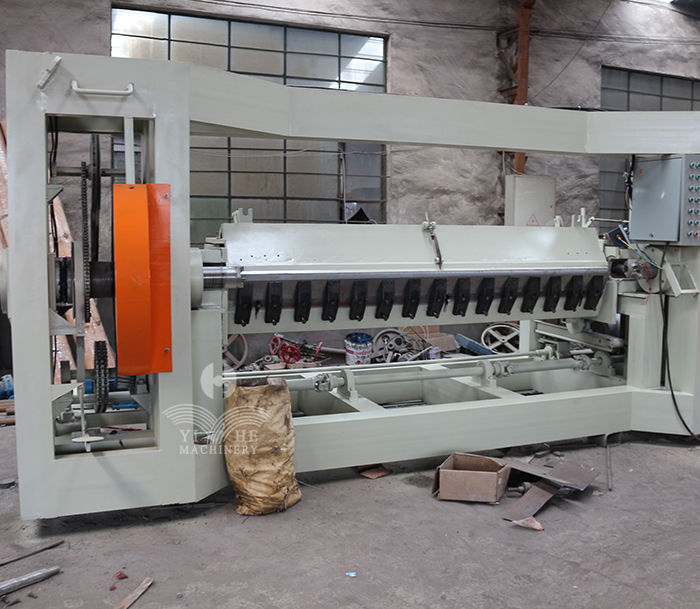

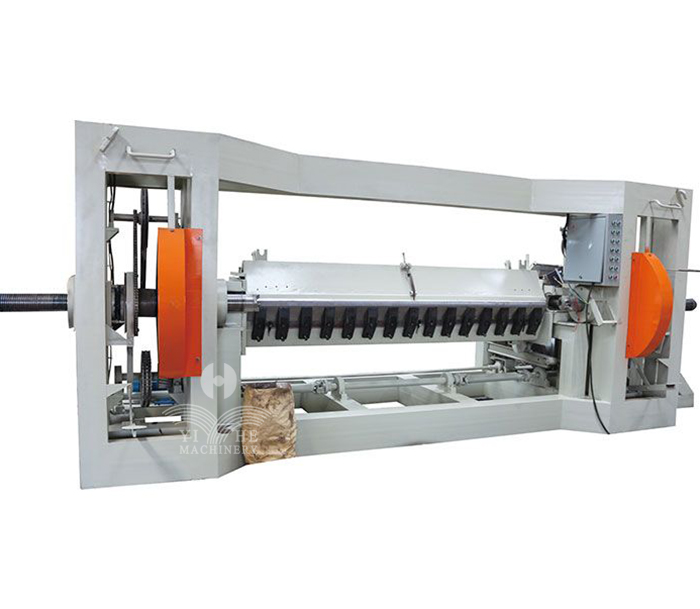

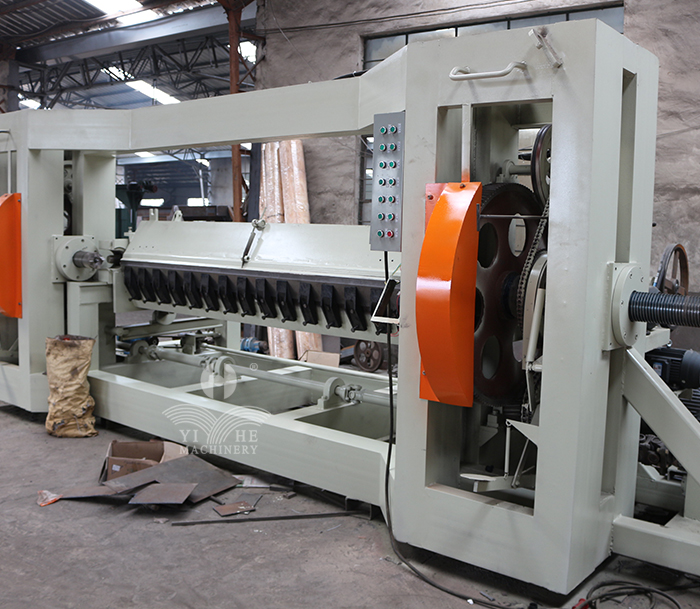

8FT Spindle Log Debarking Machine.jpg8FT Spindle Log Debarking Machine (2).jpg8FT Spindle Log Debarking Machine (1).jpg


Share
Features:

1. It is used to rotary cut the big diameter wood and wood diameter can be up to 1500mm.

2. FRANCH SCHNEIDER electric components, machine runs stably.

3. The whole structure is welded by the Q235B steel and channel steel, andit is durable.

4. The machine can be customized according to client’s requirement.

Technical parameters:

Structure:

Vertical

Wood length:

2000mm-2600mm

Max. wood diameter:

1500mm

Wood loading system:

2 pieces of Rotary crane

Veneer thickness:

0.8-2.6mm

Motor brand:

CHINA HUALI

Main motor power:

22kw,

Chuck motor power:

4kw*2pcs

Feed motor:

1.5kw*1pcs

Knife adjusting motor:

1.1kw*1pcs

Hydraulic motor power:

0.75kw*1pcs

Loading system motor:

3kw*2pcs

Total power:

39.35kw

Voltage and hertz:

380V,50HZ

Gearbox:

CHINA brand

Pressure bar:

electric

Peeling knife:

HSS(high speed-steel)

Machine weight:

about 7000KGS

Machine dimension:

6000*2300*2600mm
