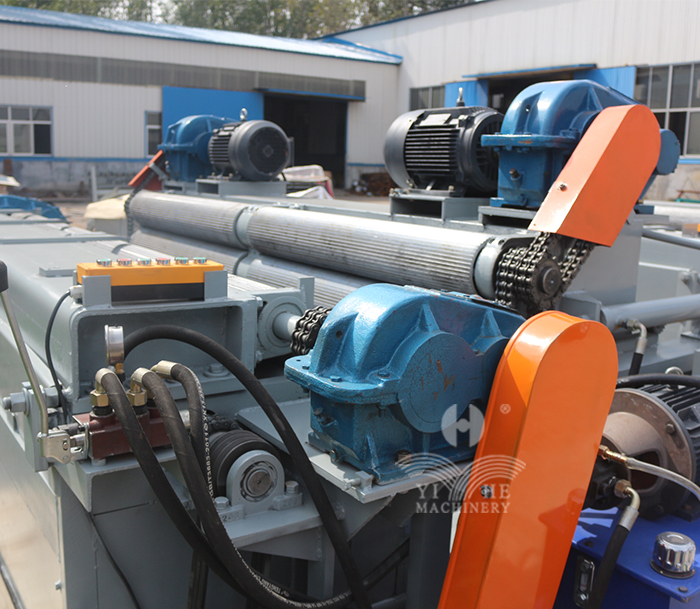

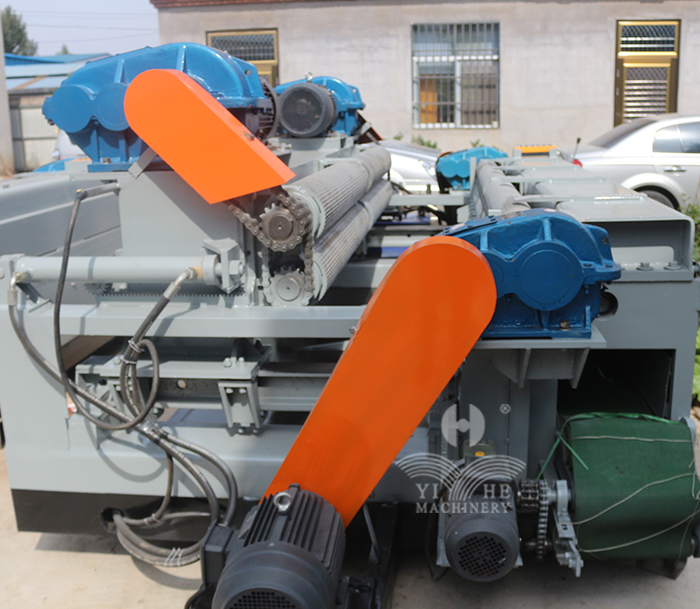

1. The double roller comes forward and backward. It is convenient for wood uploading and wood unloading, which can improve the speed of bark removing work.
2. Reasonable machine design, machine runs stably,easy operation.
3. Adopting hydraulic feeding system, the pressure can be adjusted to suit different density of wood.
4. The machine's working width and openning stroke can be customized according to client's requirement.
Model Number: | YDB/4L |
Wood diameter: | Φ60-Φ550mm |
Wood length: | 900-1300mm |
Blade length: | 1400mm |
Thickness of veneer peeler: | 1-3mm |
Linear speed of host machine: | 51m/min |
Double roller diameter: | Φ200mm |
Single roller diameter: | Φ150mm |
Double roller motor power: | 11kw |
Single roller motor power: | 7.5kw |
Hydraulic station motor power: | 5.5kw |
Total power: | 24kw |
Overall size: | 4500*2100*1400mm |
Machine's weight: | 3500kg |
