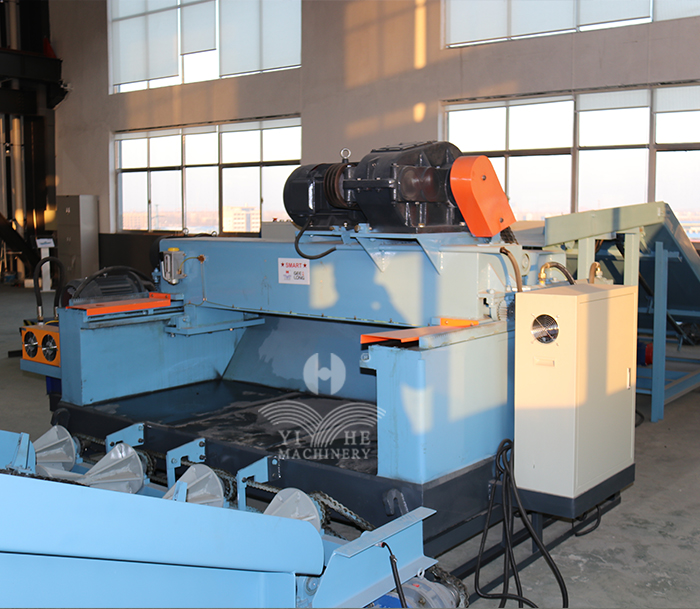

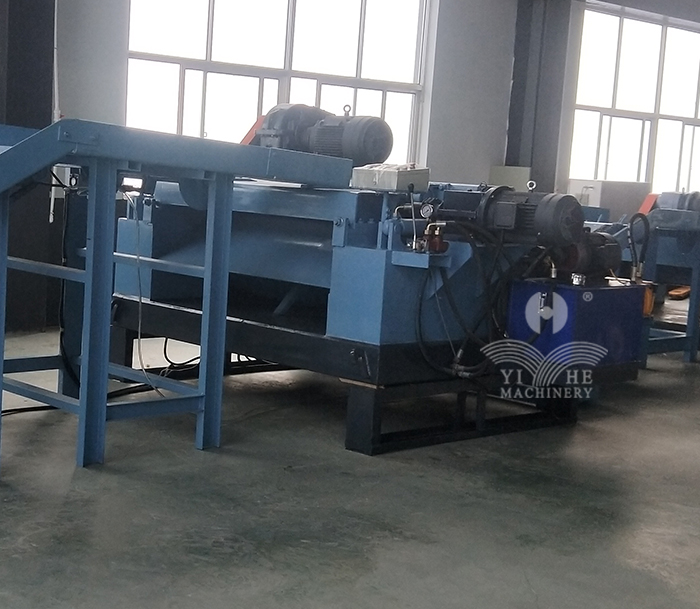

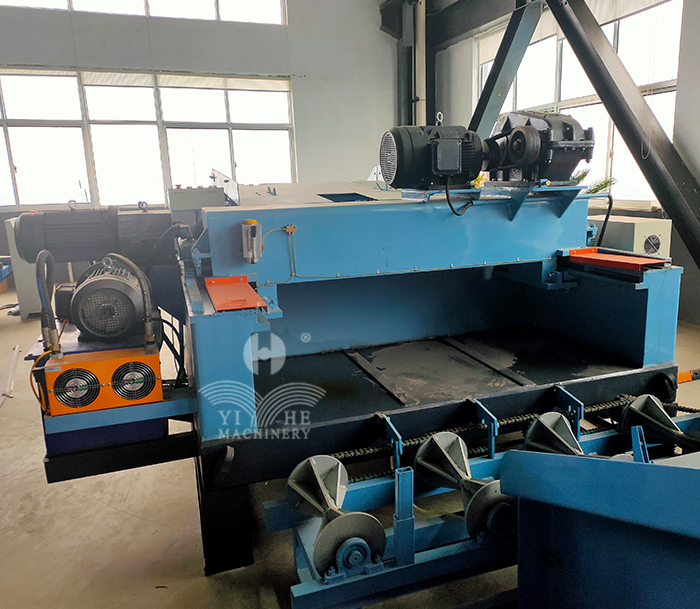

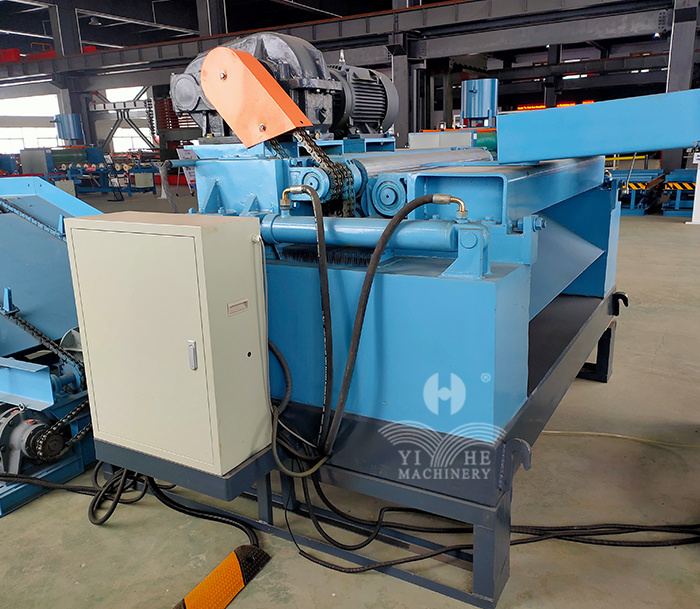

1. This wood debarking machine is updated based on the 4ft normal model debarking machine, the whole machine structure is welded by the steel and the structure design is more stable and reasonable;

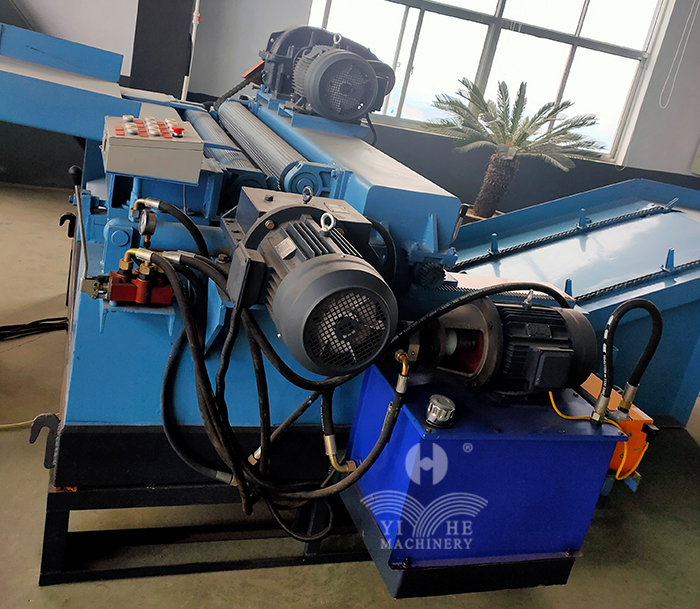

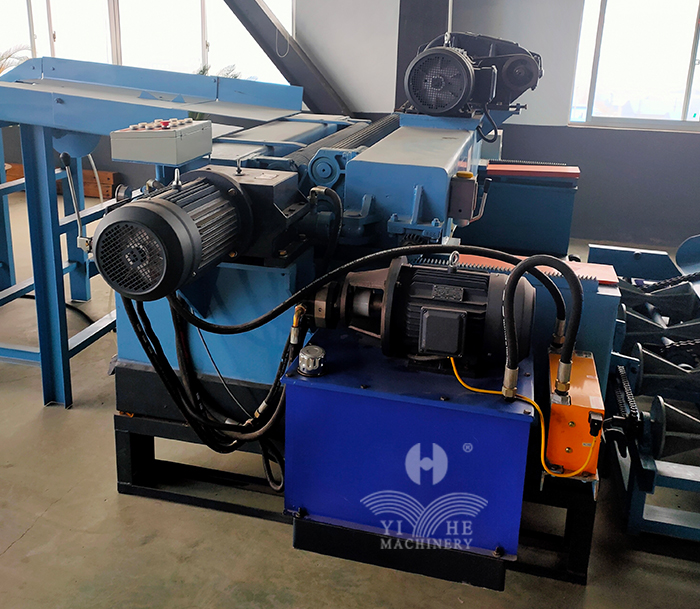

2. Hydraulic station is equipped with oil cooler, avoid the sealing of cylinder damage, and this high quality hydraulic station can ensure this debarking machine 24 hours' working without any stop.
Model number: | YDB/4H |
Wood diameter: | Φ80-Φ550mm |
Wood length: | 900-1300mm |
Blade length: | 1400mm |
Thickness of veneer peeler: | 1-3mm |
Linear speed of host machine: | 52m /min |
Double roller diameter: | Φ150mm |
Single roller diameter: | Φ150mm |
Double roller motor power: | 11kw |
Single roller motor power: | 7.5kw |
Hydraulic station motor power: | 5.5kw |
Total power: | 24kw |
Overall size: | 4500*1900*1450mm |
Machine's weight: | 4200kg |
