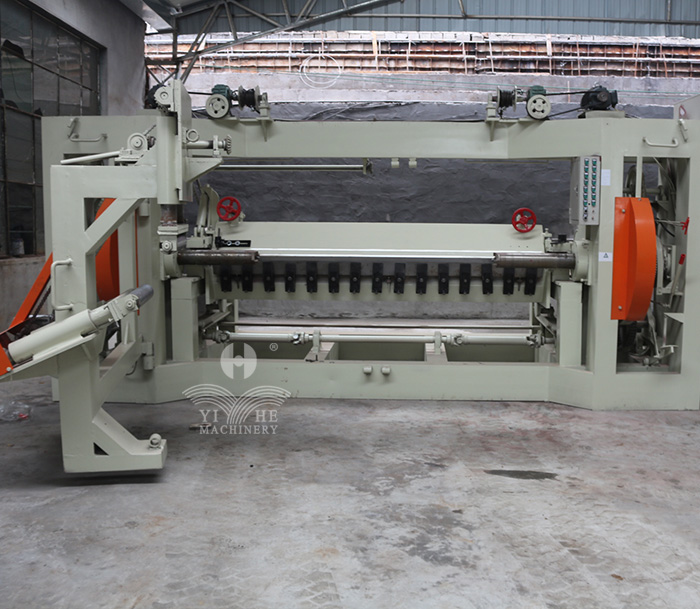

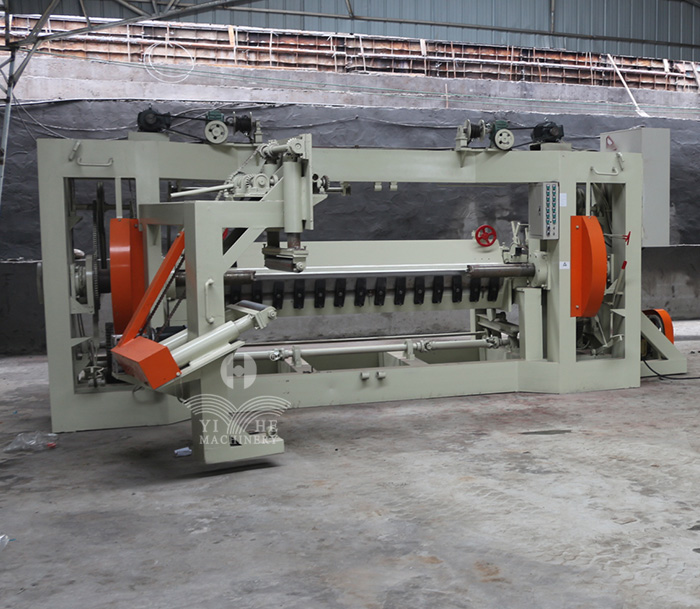

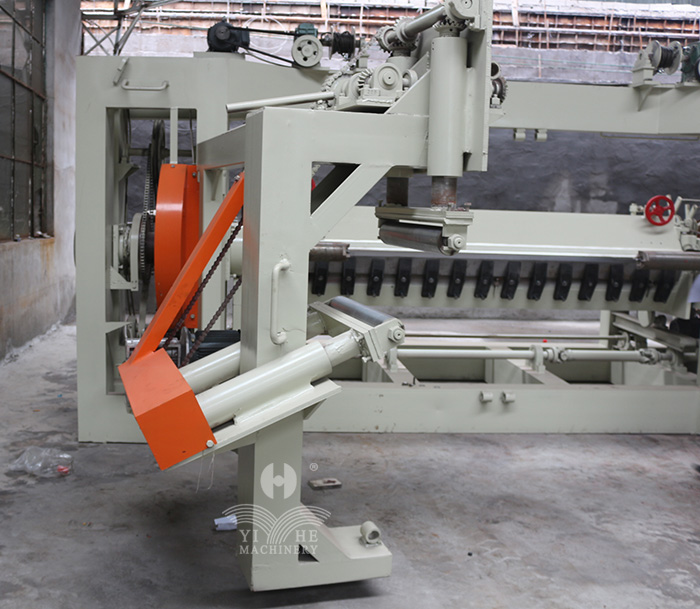

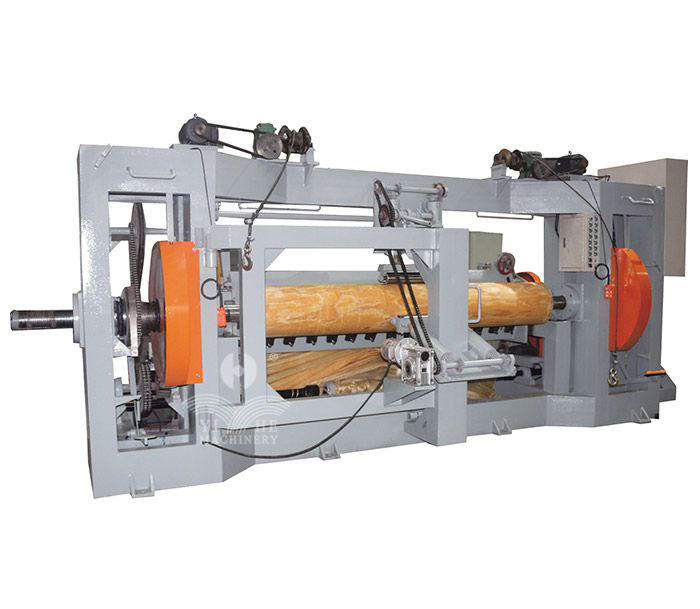

1. It is used to rotary cut the big diameter wood and wood diameter can be up to 1500mm.
2. TAIWAN DELTA brand inverter and FRANCH SCHNEIDER electric components, machine runs stably.
3. The whole structure is welded by the Q235B steel and channel steel, and it is durable.
4. Rotary cutting with high accuracy, quick speed, veneer surface smooth.
5. Machine bottom can be installed with small diameter wood log conveying system, can realize automatic thickness adjusting system.
6. Machine peeling spindle can be equipped with SPINDLE SUPPORTING FRAME, can realize 2ft-8ft different processing width adjustment,
max. realize one machine having multi-function, reduce investment cost.
Structure: | Vertical |
Wood length: | 2000mm-2600mm |
Max. wood diameter: | 1500mm |
Remaining wood min. diameter: | 120mm |
Wood loading system: | 2 pieces of Rotary crane |
Veneer thickness: | 0.2-2.6mm |
Motor brand: | CHINA HUALI |
Main motor power: | Inverter motor 30kw, |
Chuck motor power: | 4kw*2pcs |
Feed motor: | 1.5kw*1pcs |
Knife adjusting motor: | 1.1kw*1pcs |
Hydraulic motor power: | 0.75kw*1pcs |
Loading system motor: | 3kw*2pcs |
Total power: | 47.35kw |
Inverter: | TAIWAN DELTA |
Voltage and hertz: | 380V,50HZ |
Gearbox: | CHINA brand |
Pressure bar: | electric |
Peeling knife: | HSS(high speed-steel) |
Machine weight: | about 9500KGS |
Machine dimension: | 6000*2300*2600mm |
