1. It has touching screen control system, and you can set all kinds parameters in this system, and language showing in this controlling screen,
can be tranlated into your country's own language.
2. The linear speed of host machine can be adjusted from 45-120M/MIN.
3. America Emerson brand frequency converter, the machine runs stably, and low failure rate.
Model Number: | YHHDP4 |
Wood diameter: | Φ30-Φ550mm |
Wood length: | 900-1300mm |
Blade length: | 1500mm |
Thickness of veneer peeler: | 0.8-4.0mm |
Linear speed of host machine: | 35-80m/min, 60-120m/min |
Double roller diameter: | Φ180mm |
Single roller diameter: | Φ150mm |
Double roller motor power: | 7.5kw*2pcs |
Single roller motor power: | 5.5kw*2pcs |
Cutting knife motor power: | 2.2kw(SERVO MOTOR) |
Rubber roller motor power: | 2.2kw |
Feeding motor power: | 7.5kw(SERVO MOTOR) |
Veneer conveyor motor power: | 1.5kw |
Total power: | 39.4kw |
Overall size: | 4500*1900*1450mm |
Machine's weight: | 6200kg |
Contacter: David Tam
Email:
WhatsApp/WeChat:
+8617862264390

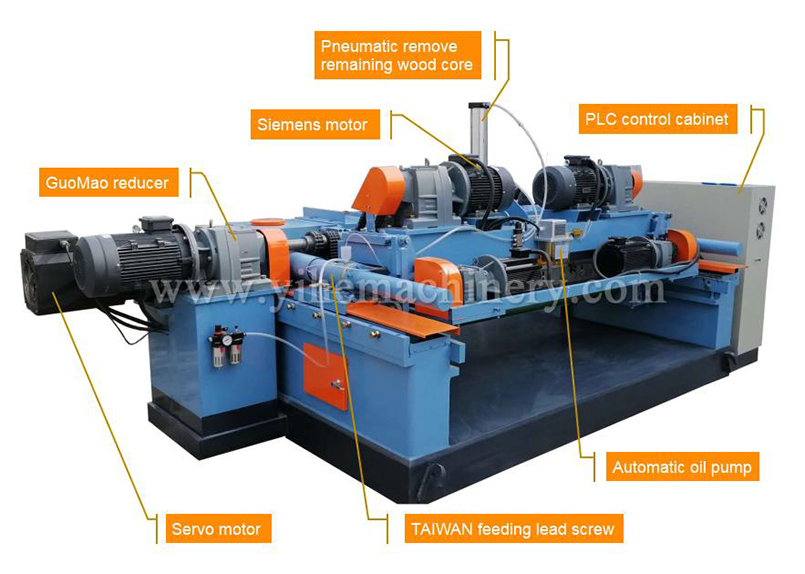

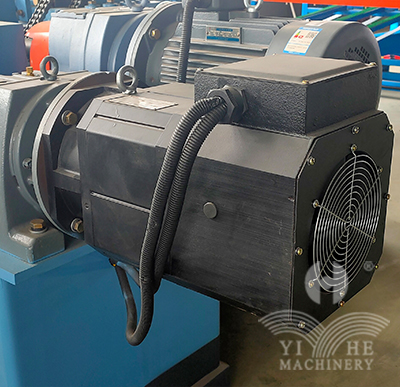

| 1. Servo Feeding Motor The feeding motor is 11kw servo motor. It can guarantee stable machine running, stable rotatory peeling speed and accurate veneer thickness. So the machine can produce high quality veneer. |  |

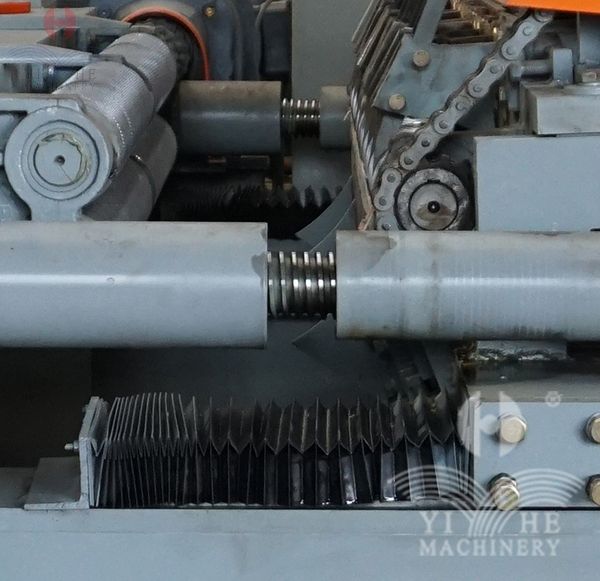

 | 2. TAIWAN Feeding Lead Screw and Screw Nut The machine uses mining equipment's feeding lead screw, which is made by TAIWAN technology. The feeding lead screw is made by special steel, the screw nut is made by copper. It has very high feeding accuracy and guarantee accurate veneer thickness. The standard feeding screw diameter is 70mm. Diameter can be 100mm according to client's requirement. |

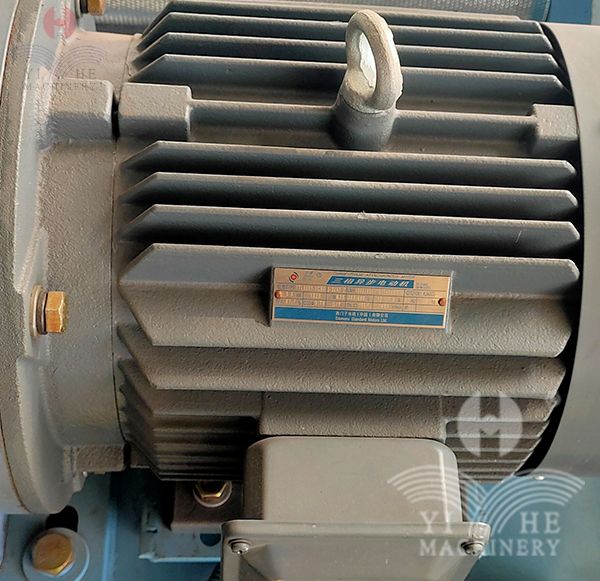

| 3. Siemens Motor YIHE complete set of plywood equipment supporting Siemens motor or Shandong Huali motor, the power voltage and frequency can customized according to different countries and regions. |  |

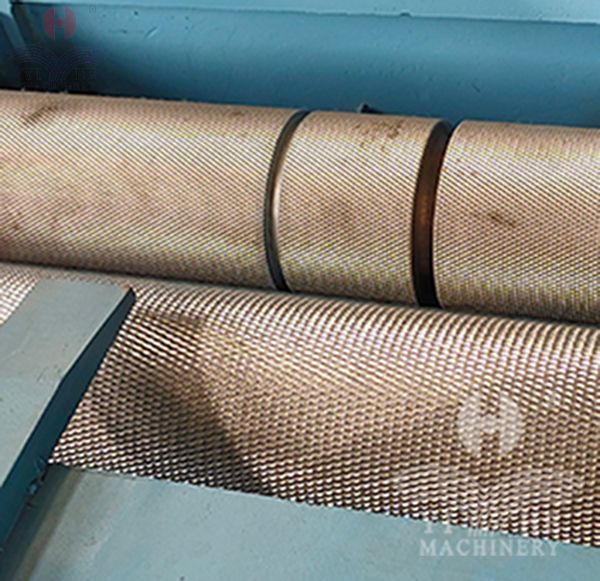

 | 4. Electroplating Peeling Roller All peeling rollers of YIHE veneer peeling machine are quenched and electroplating process, the rigidity is better, we can choose the right roller patterns to meet your different wood species according to different kinds of veneer and wood. |

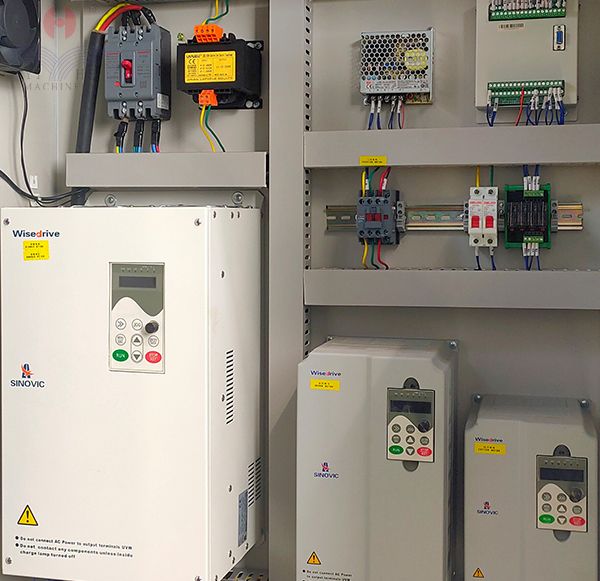

| 5. France Schneider Electrical Parts of Panel Box All YIHE veneer peeling machines use advanced PLC control system and France Schneider brand electrical parts. Operate easily and long service life. |  |
