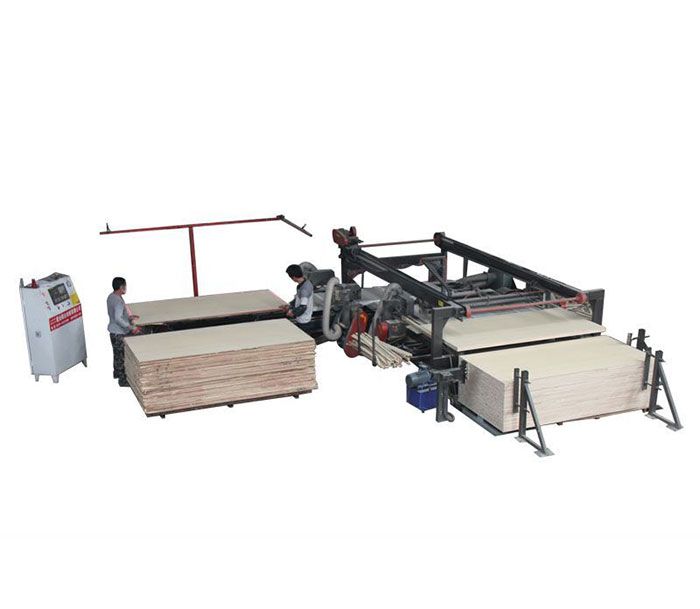

Adjustable Plywood Edge Trimming Saw Machine
  • Adjustable Plywood Edge Trimming Saw Machine

Adjustable Plywood Edge Trimming Saw Machine

This equipment is one of the main equipment for the plywood manufacturers to complete the section. It is mainly used for the saw edge of artificial plates, such as multi-layer board, carpenter board, particleboard, density board and so on. The size of the saw edge is 48ft,adjustable 20mm for a side, the machine speed is high, the size of the timber is standard and unified.

  • product details
  • video

1. PLC control system, using 11 sensor switch, motor traction with PLC, biaxial linkage, fast speed, large output, program setting, any two people operation, greatly reduces the labor cost. The size of the saw edge is 48ft,adjustable 20mm for a side.

2. Base is welded.Let machine runs smoothly and with high accuracy.circulating lubricating oil have long service life.

3. 6 saw blades (4 big 2 small), speed up to 6800 rpm, underlined function, fully solve the rendering, burr, burr, core pulling phenomenon, sawing smooth, without polishing.

4. Infrared positioning, automatic platoon, load track saw edge, four cylinder positioning, high edge straightness, no corner phenomenon.

5. Automatic lifting platform, automatic stacking. The installation of lifting platen limiting device has completely solved the problem of uneven packing.

6. The automatic saw machine has the effect of dust removal from top to bottom.

Technical parameters:
Model No.JP48-1
Processing length & width1220mm *2440mm
Processing thickness3-60mm
Loading speed0 -30m/min
Sawing blade diameter305mm
Sawing blade working speed6200rpm/min
First saw motor power15kw
Second saw motor power15kw
Servo motor power4.8kw
Bottom line saw cutting motor power2.2kw
Board lifter motor power3kw
Total power40kw
Total weight4780kg
Machine overall dimension7000*5000*1800mm

Contacter: David Tam
