Features:

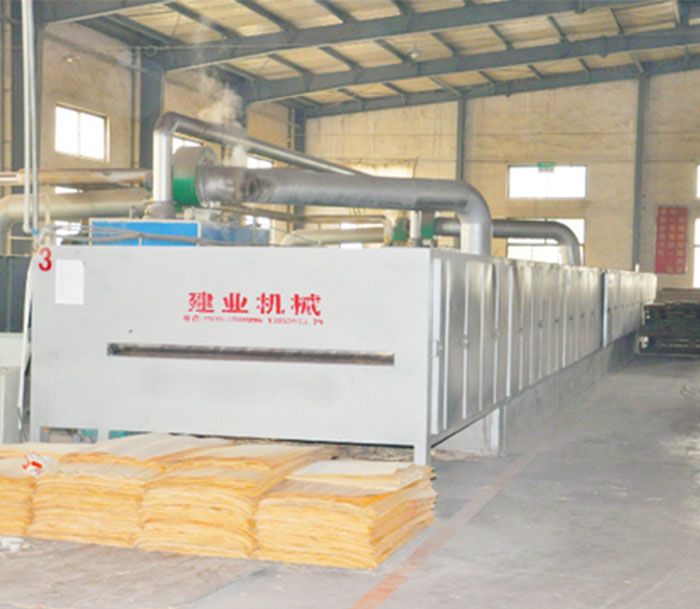

The roller type veneer drying line is a special drying equipment for the wood industry and is suitable for leveling and drying various core boards and dough sheets. The product has the characteristics of simple operation, stable operation, easy maintenance, one-time completion of leveling and drying. The use of hot air circulation has greatly reduced the operating costs, shortened the time for hot-pressing work, increased the production volume, greatly improved the quality of the plates, and enhanced the competitiveness of the products in the market.
Technical parameters:
| Model No. | Hg(2200) | Hg(2000) |
| Working width（m） | 2.2 | 2 |
| Heating chamber section | 5 | 5 |
| Heating chamber length（m） | 20-30 | 20-30 |
| Cooling length（m） | 3-5 | 3-5 |
| Board speed（m/min） | 0-25 | 0-25 |
| Total motor capacity | 25.5kw | 25.5kw |
| Heating fan motor | 7.5kw | 7.5kw |
| Discharge device motor | 25 | 25 |
| The initial moisture content of the board (%) | 25 | 25 |
| Dry board final moisture content(%) | 15 | >15 |
| Drying board thickness（mm） | 0.6-3.6 | 0.6-3.6 |
| Heating medium | Dry hot air | Dry hot air |
2.8m single-layer hot air roller dryer
| Totle length | 46 meters single layer (200 sheets/hour) |
| Production(per hour) | 1-2m³ |
| Working width | 2-8m |
| Speed of work | 0-25m |
| Drying board thickness（mm） | 1-3mm |
| Dry board final moisture content(%) | <15° |
| Heat fan power and quantity | 5.5kw*14unit |
| Heater speed | 1440r/min |
| Hot air flow | 9500m³/h/unit |
| Hot air pressure | 3.5Mpa |
| Number and power of cooling fans | 4kw*2 |
| Cooling fan speed | 1440r/min |
| Hot area length | 42m |
| Cold area length | 4m |
| Feed motor number and power | 4kw |
| Total power | 89kw |
| Dimensions (length * width * height) | 46m*3.4m*1.5m |
| Price | 14000RMB/Meter |
