Features:
1. The main frame adopts high-quality national standard steel plate to be welded at one time. The Simple but strong structure, reasonable design, great rigidity, big undertaking strength.
2. The use of domestic high-quality oil cylinders, the main components are selected imported hydraulic parts, to ensure a long service life
3. The use of automatic hydraulic control system, precise pressure control, short pressurization cycle, high work efficiency.
Technical parameters:
| Pressure | 400-600T |
| Board feeding direction | Transverse |
| Layer | 1 |
| Layer space | 1800mm |
| Working table size | 1370*2700MM |
| Cylinder stroke | 1050mm |
| Cylinder | Ø320MM*2PCS |
| Power | 11KW |

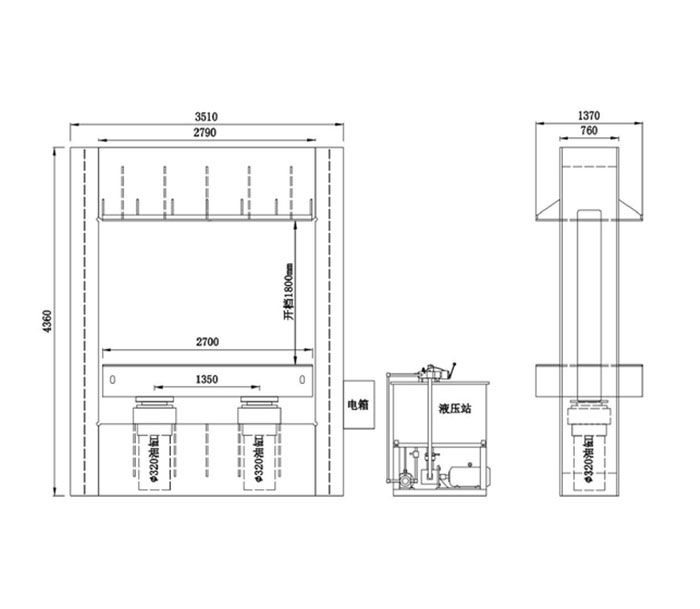

| Overall dimension | 3550*1370*4200MM |
| Total weight | 13000KGS |
| Working method | Automatic |
| Composite frame | Assembled |
| Upper and bottom beam | 900mm |
| Middle beam | 400mm |
| Frame thickness | 35mm |
