Glue Spreader

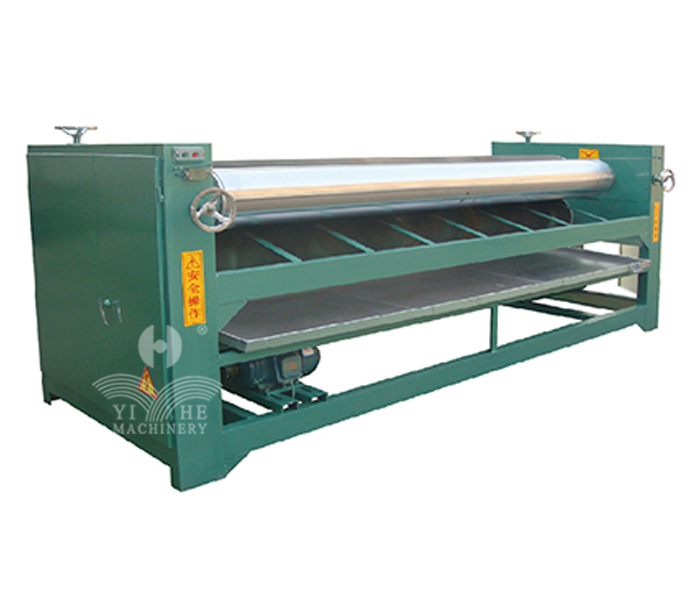

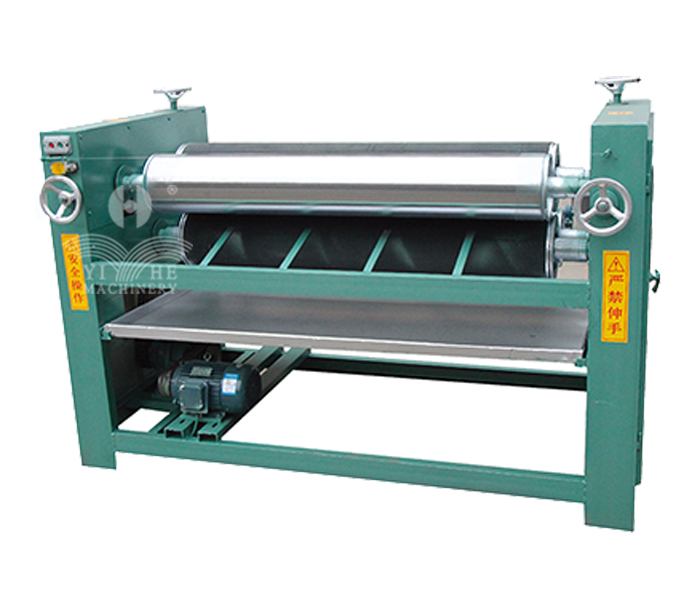

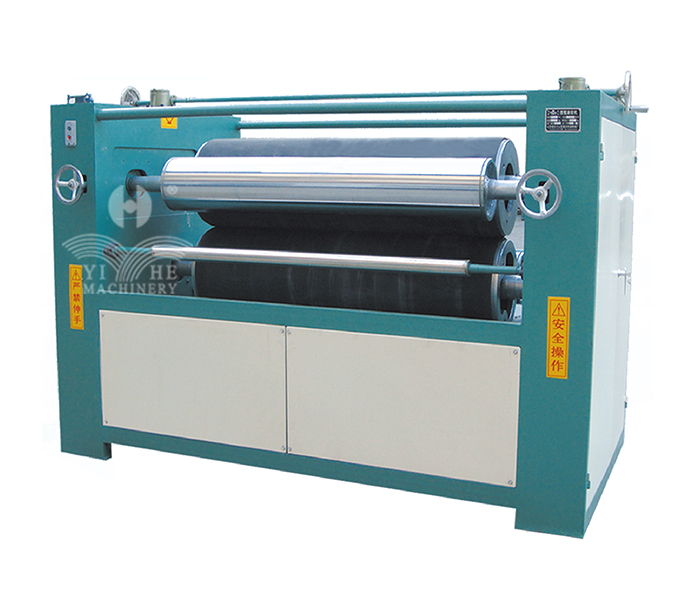

The glue spreader machine spreads the glue on the core veneers, multi-layer board, plywood, block board and so on. it has three rollers and four rollers. The one with three rollers is single-side glue coating machine. The glue spreader with four rollers is double-side coating machine. The glue spreader is divided into 4ft, 5ft, 8ft, 9ft and so on. It can be customized according to client's requirement. It is produced with reasonable design, glue coating averagely, saving cost, easy operation and lower price.

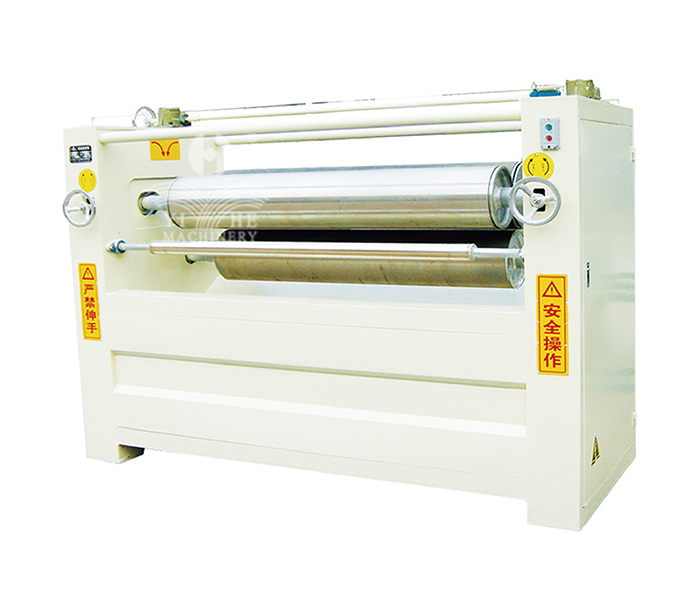

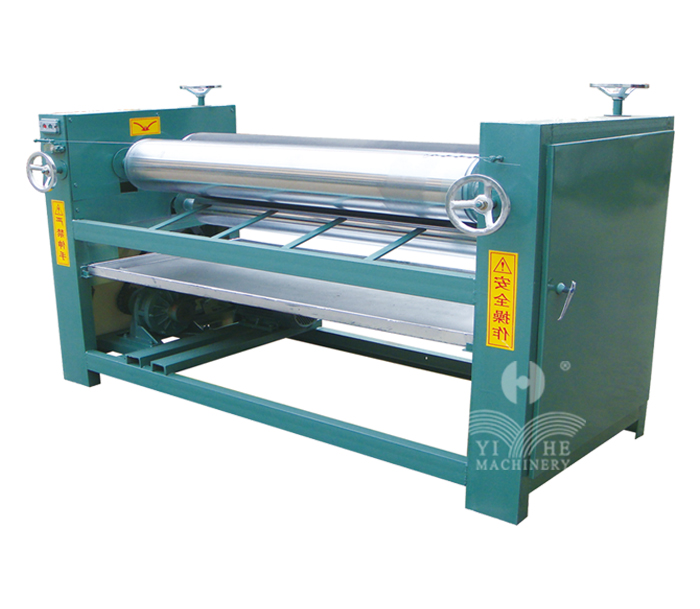

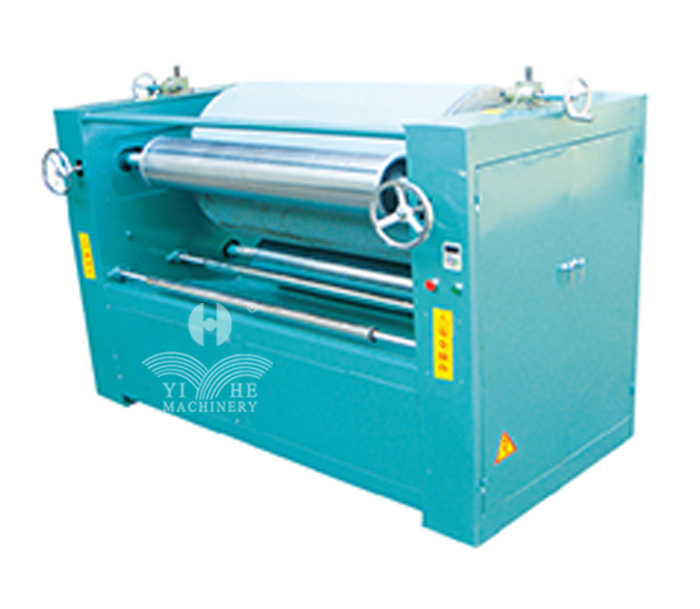

new type 4ft glue spreader8ft double sides coating glue spreader4ft single side coating glue spreader4ft double side coating glue spreader

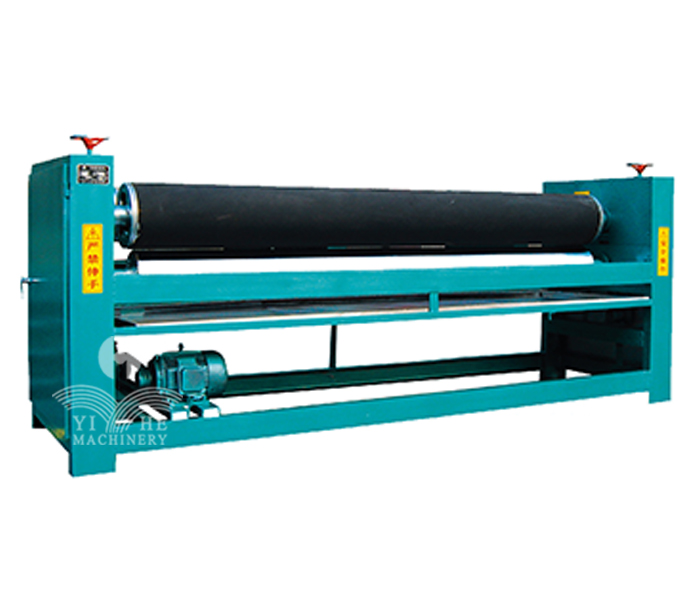

8ft single side coating glue spreader4ft double side coating glue spreader4ft single side coating glue spreader4ft single side coating glue spreader
Share
  • product details
  • video
Features:

1. It has various uses, it can be used for core veneer, muti-layer board, plywood, block board and so on.

2. It has coating averagely, high productivity, save glue, save staff and save cost.

3. Increasing the utilization of glue and decreasing and minimize glue consumption.

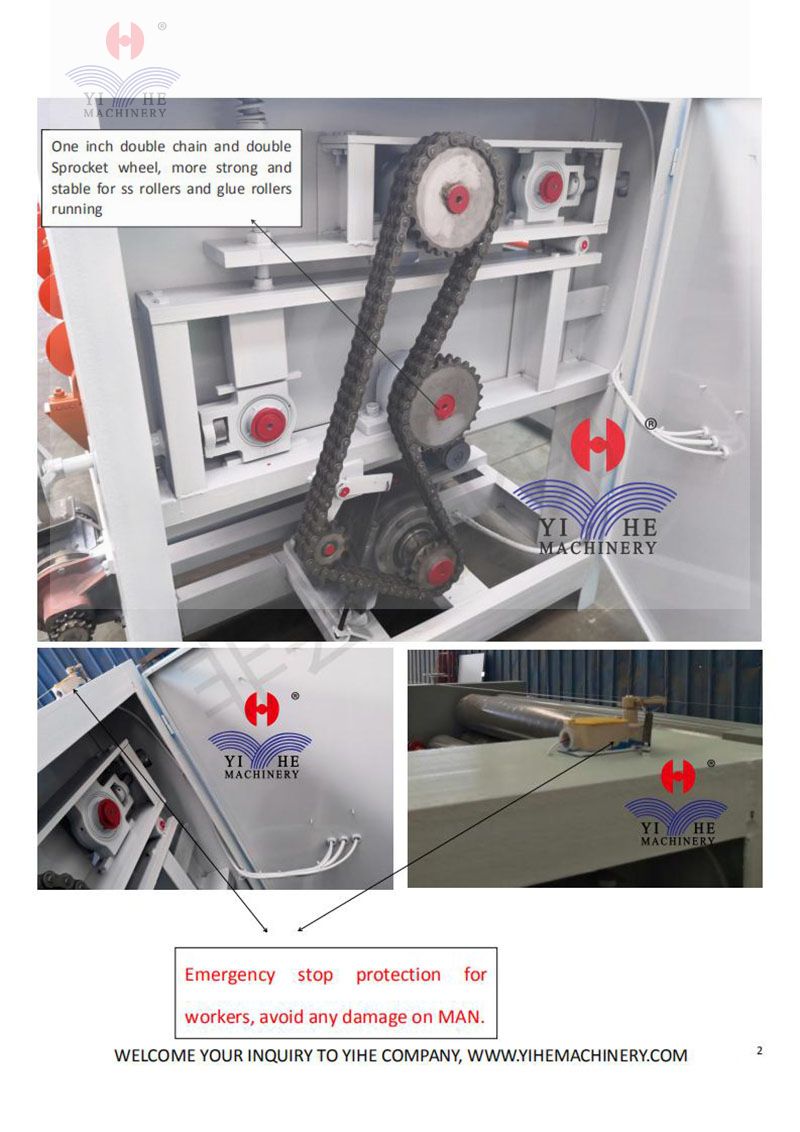

4. The safety device is able to immediate stop the machine whenever the danger occurred.

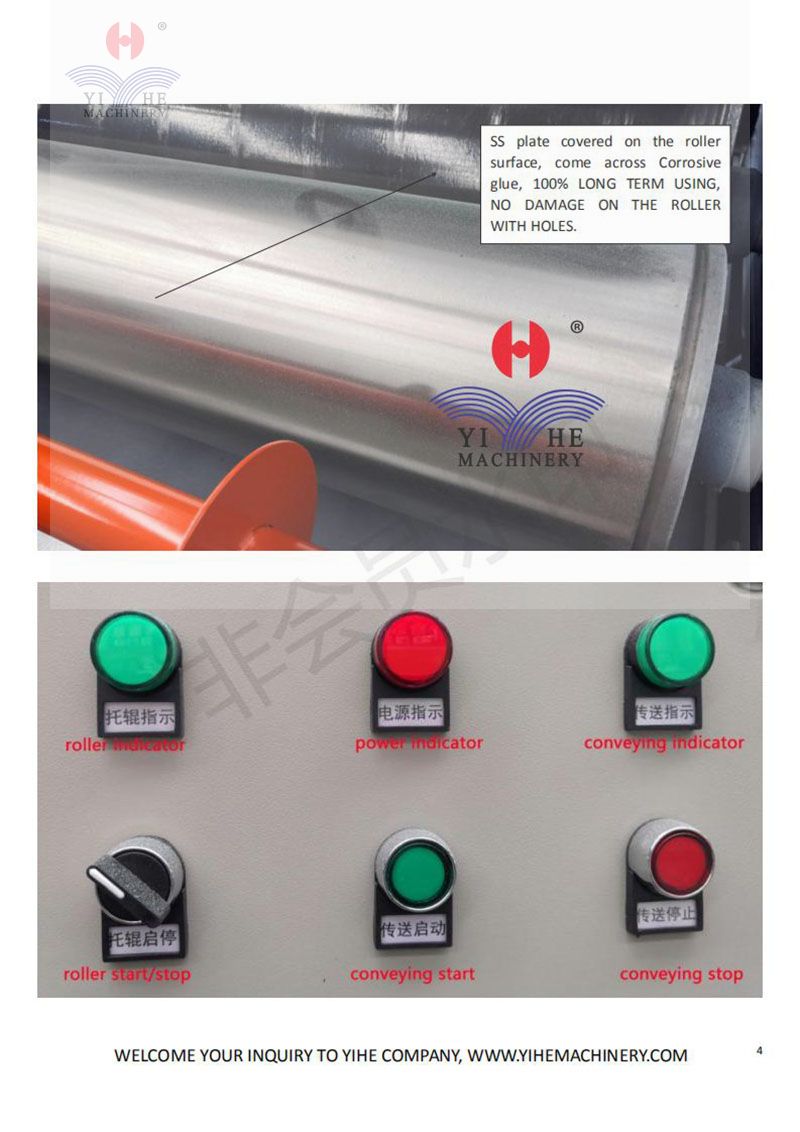

5. Rubber roller is made by the high quality natural rubber, the squeeze roller is chromate treatment seamless steel pipe, the roller surface is covered by stainless steel, never has the rust bec of glue corrosion.

6. Easy operation and easy maintenance.

Technical parameters:
Machine typeOne side coating
glue spreader

Double sides coating

glue spreader

Roller quantity34
Line speed30m/min20-30m/min
Coating roller diameter245mm,310mm,410mm

245mm,305mm,

310mm,410mm

Coating roller length1400mm,2700mm1400mm,2700mm
Squeeze diameter273mm,319mm219mm,273mm
Squeeze length1400mm/2700mm1400mm/2700mm
Motor power3kw,4kw,5.5kw3kw,5.5kw
Max.board thickness30mm30mm
Driving methodGear and chainGear and chain
Machine diameter4ft:2250*1250*1700mm4ft:2250*1250*1700mm
8ft:3250*1250*1700mm8ft:3250*1250*1700mm
Machine weight4ft:600KG 8FT:1350KG4ft:700KG 8ft:1500KG
