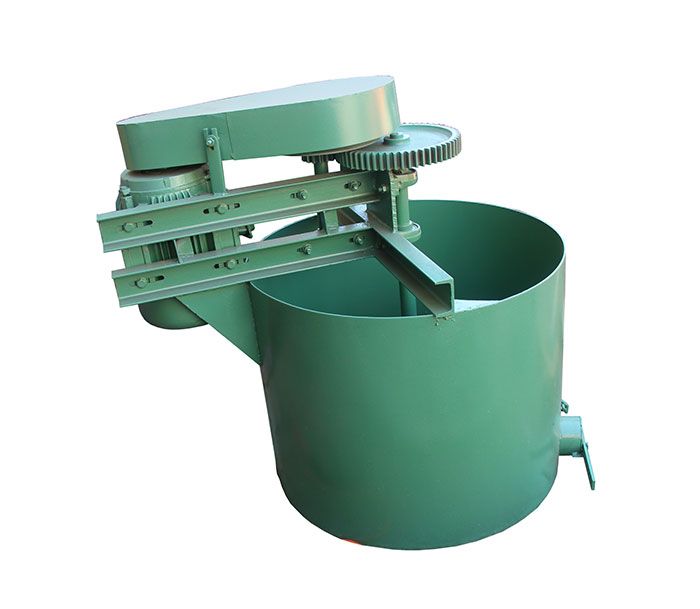

Glue Mixer Machine

The glue mixer machine is main equipment which is used to modulate the glue for plywood. Glue mixer is included into vertical glue mixer and hydraulic lifting glue mixer. The speed of glue mixer must be suitable. If the speed is more quick, the air can be mixer into the glue easily, the glue will have foam; if the speed is slower, the mixing is not averagely. the speed usuallyt is 20-60r/min. The capacity of the glue mixer machine can be customized by your production capacity. The mixing capacity per cycle usually need to meet 1 hour production needs.

Inquire Now None

product details
video

Features:

1. This glue mixer adopts hydraulic lifting and dropping, so mix the glue averagely.

2. Adopts frequency speed regulation, the speed can be adjusted according to different production process. This can meet the different glue specification requirement of each production process.

3. Machine production capacity can be customized according to client’s requirement.

Technical parameters:

Hydraulic lifting mixer specification:

Power	11kw、15kw
Lift mode	hydraulic lift
Glue barrel number	2pcs

Vertical glue mixer specification:

Barrel diameter	Ø800*800mm
Machine capacity	150kg per cycle
Motor power	3kw
Machine weight	100kg
