Vacuum Veneer Stacking Machine

The veneer stack machine is connected with the veneer peeling machine and it is used to stack the veneer automatically. It also can sort out the bad veneer from the good veneer, like the veneer with holes. the veneer stack machine is divided into vacuum adsorption stack machine and swing stack machine.

Inquire Now None

product details
video

Features:

1. Stack the veneer automatically.

2. Screen out the veneer automatically.

3. Saving the workers, improve the productivity.

4. Operation simply, no need professional operator.

5. The machine can be customized according to the veneer size and stack quantity.

Technical parameters:

Vacuum adsorption stack Technical parameters:

Model number	GL127A	GL127B
Wind tunnel Adjustable	NO	YES
Fan	3KW*2PCS	2.2KW*4PCS
Lifting method	Chain reducer 1.5KW*1PCS	Hydraulic lifting method /chain reducer
Veneer size	1270670mm/1270900mm	960480mm/1270670mm/1270*900mm/
Veneer thickness	<2.6mm	<3mm
Motor power	14.25kw	18.55kw/16.65kw
Dimension	600020002750mm	600020002750mm

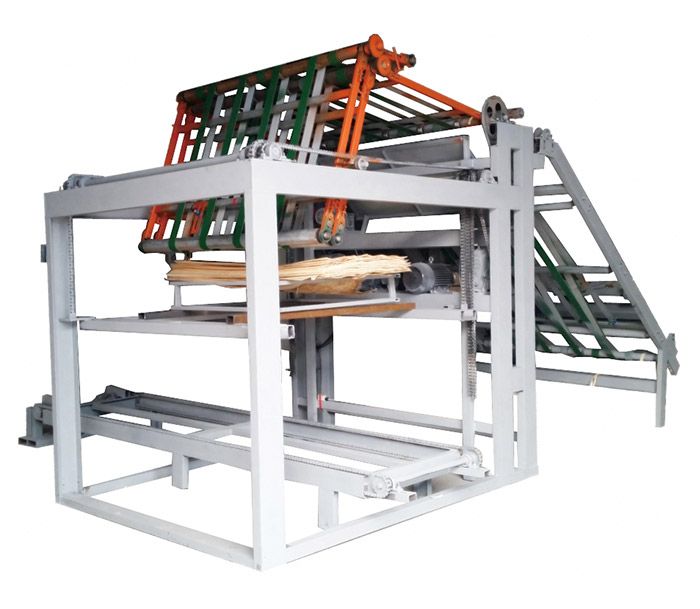

Machinery swing stack machine

Working width	1600mm
Max. Veneer Width	1400mm
Max. Veneer Length	1220-1300mm
Grade	Grade 1:waste veneers, Grade 2: whole veneer
Working height from the beginning	400mm or another value, please let me know before production.
Language of PLC	English
