Door Panel Hot Press Machine

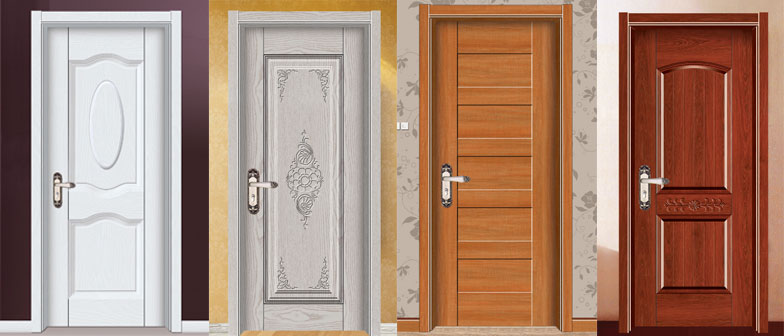

This door skin hot press machine mainly is used to do the molding and lamination with natural veneer and melamine paper, the pressure range of this machine: 900-1400T, layers: 3-5, each daylight need to be equipped with molding, the function similar like molding press machine, but actually this is hot lamination technology, hot pressing and lamination finished.

  • product details
  • video

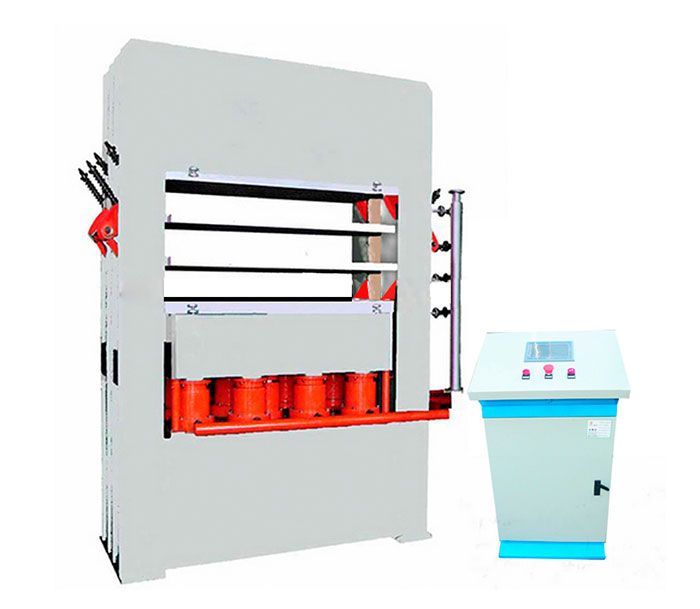

Door Panel Hot Press Machine

1. Machine frame all cut by CNC, after combined, high precision, stable performance, and high efficiency in production.

2. Controlling panel use imported brand electrical parts, PLC brand: Mitsubishi, Delta, Omron...etc for selection.

3. Machine is equipped with synchronizer, and can let hot platen stop at any poistion, stopping time is adjustable, it can reduce the pressed temperature diffference between top layer and bottom layer to ensure more high quality product.

4. Equipped with guiding device, ensure hot platens’ position all same without any mistake, finally make upper mold and bottom mold 100% perfect combination.

5. Machine can be designed as transverse and longitudinal model, meet multi-dimensional needs.

Door Panel Hot Press Machine

Technical parameters:
Model No.GL900-3X7GL900-4X8GL1200-3X7GL1200-4X8GL1400-4X8
Max. Pressure KN90009000120001200014000
Openning MM250250250250250
Hot platen size MM1150X2250X601400x2600x601150x2250x601400x2600x601400x2600x60
Main cylinder diameter MMΦ280Φ280Φ280Φ280Φ340
Main cylinder quan.  PCS.66886
Max. Pressure allowed MPA2525252525
Max. temperature ℃210210210210210
Machine weight  T30/35/4034/40/4638/44/5040/48/5248/52/58
Machine dimension MM3200x1300x43003500x1500x43003200x1300x43003500x1500x43003500x1500x4300
