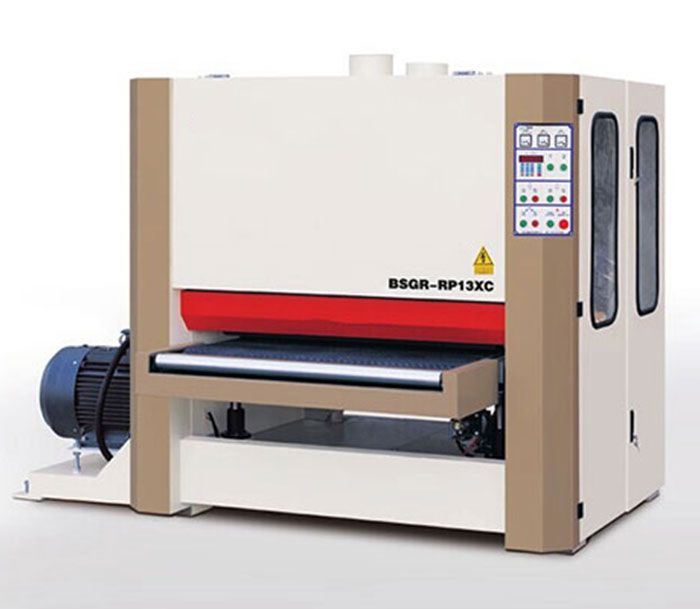

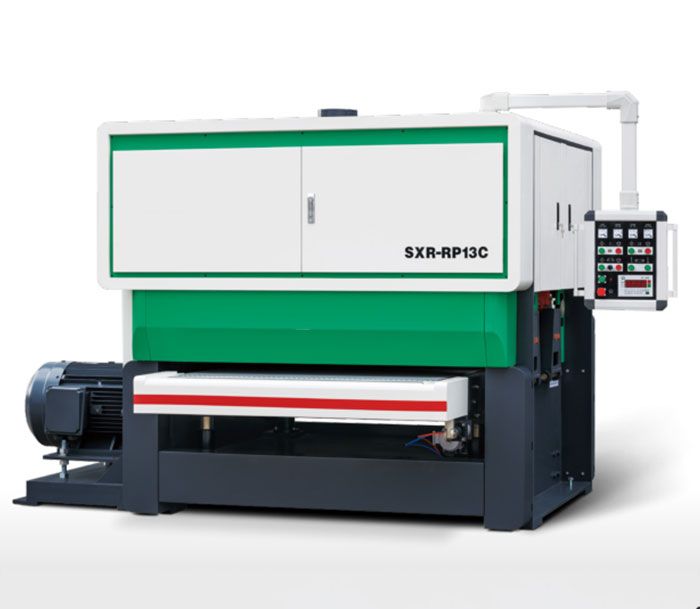

This machine is mainly used on the surface sanding work of the sheet of plywood, blockboard, wpc board, particle board, mdf board...etc. All bearings brand is NSK, pneumatic parts brand is AirTac, main electrical parts are Schneider, electrical controller will be arm-rotating, good designed machines spare parts layout, easy and simple operation, loading using the frequency inverter, high production capacity.
Jianye Shunda machinery, professional in designing and producing all kinds of sanding machine, and we can produce the sanding machine according to customer's special requirements, meet your production needs, if you want more product information, please contact foreign sales of Jianye Shunda machinery.
Model Number | YHBSG2213R-RP |
Working width | 40-1300mm |
Working thickness | 2.5-80mm |
Working length | ≥640mm |
Number 1 abrasive belt speed | 22m/s |
Number 2 abrasive belt speed | 18m/s |
Number 3 abrasive belt speed | No |
Feeding speed | 6-30m/min |
Size of abrasive belts(w*p) | 1330*2200mm |
Motor power | 37kw, 22kw |
Working air pressure | 0.55Mpa |
Consumption of compressed air | 0.15m³/min |
Speed of sucked air | 25-30m/s |
Overall dimension(l*w*h) | 2500*1970*1950mm |
Total weight | 3400kg |
